ZIG ZAG RGB led strip 60 leds / m 800 Lumens / m for lighting colored signs

Ref : SHAPRGB60-IP20   [#96]
€48.33

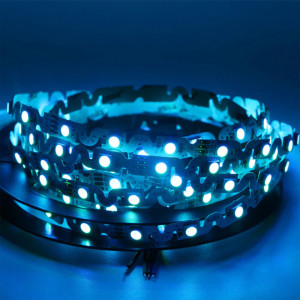

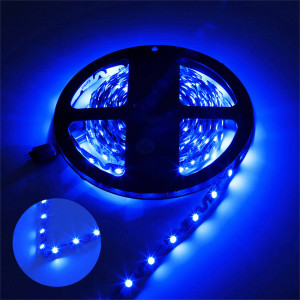

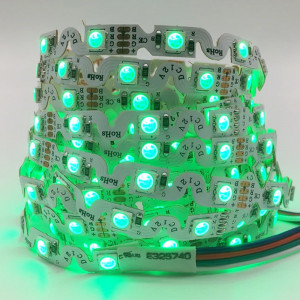

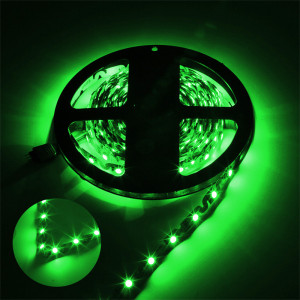

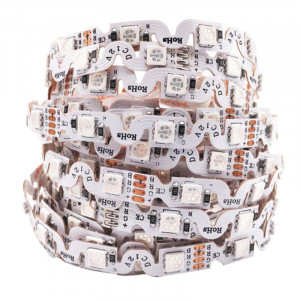

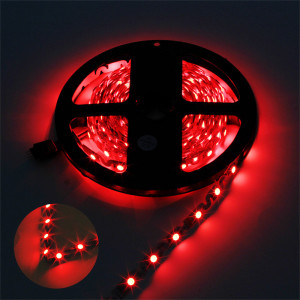

ZIG ZAG 5 meter led strip laterally foldable multi-color RGB SMD 5050 12V 60 leds / m 800 Lumens / m not waterproof IP20

Quantity
On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 7A 84W

Power supply 12V 7A 84W

€13.25
RGB led controller with 10A remote control

RGB led controller with 10A remote control

€13.71
WiFi and Internet led controller

WiFi and Internet led controller

€19.71
Ltech 12A 3-channel DMX controller

Ltech 12A 3-channel DMX controller

€50.88


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Atmosphere and decor
Color :   Multicolored (RGB)
Voltage :   12V
Waterproof :   Not waterproof
Lighting direction :   Front view

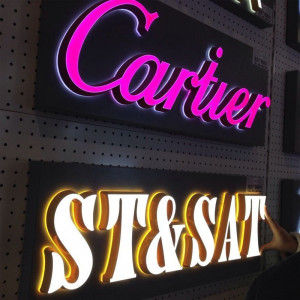

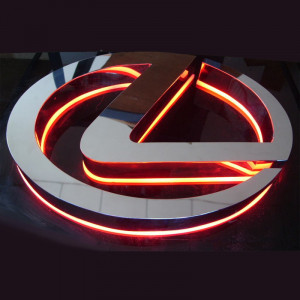

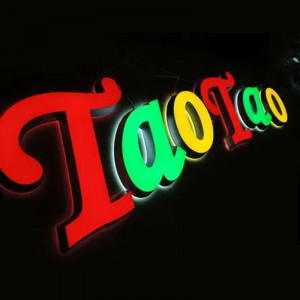

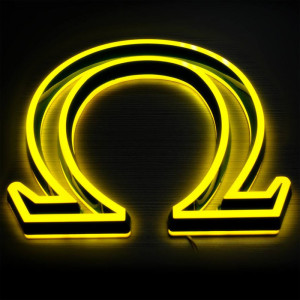

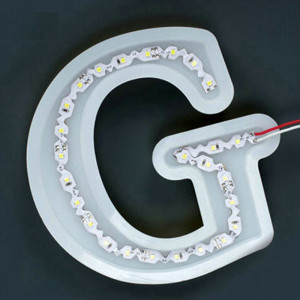

This multicolored RGB led tape can be folded sideways, which allows backlighting of illuminated signs by following the shape of the letters.
It can be used for any decoration describing non-linear shapes.

With a brightness of 800 Lumens per meter, the strip is powerful enough for a sign visible from afar.

The strip is powered by 12V DC and can be cut in groups of 3 LEDs, or every 5 cm.

Not waterproof, it can be used indoors, or in a completely waterproof sign.

The strip requires the use of an RGB controller to adjust the color and light intensity.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 90W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Led ribbon
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply.
Add the power supply in the list of accessories.
Power supply + controller + ribbon kit
Led power supply + dimmer led + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 RGB controller with remote control
You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon
Led power supply + wifi led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 Wifi controller
With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon
Led power supply + DMX led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 RGB DMX controller
Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. 3 channels are needed to drive the led strip.
LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed 3 years
Equipment guaranteed for 3 years intended for professionals and individuals for intensive use.
Supply voltage 12V DC
Type of led SMD 5050
Number of leds per meter 60
Colors RGB
Brightness 800 Lumens per meter (in cool white)
Efficiency 56 Lumens per Watt
Consumption 14.4W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 80
Lighting angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Not waterproof IP20
Dimensions 5000 x 10 x 1.5 mm
Cutout Every 5 cm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN 60598-2-20: 2015, EN 60598-1: 2015, EN 62471: 2008, EN 62493: 2015, EN 62031: 2008 + A1: 2013 + A2: 2015
Guarantee 3 years

Wiring of RGB multicolored ribbons

This strip requires an RGB controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the colors, including white.

The 4 wires, black (+), red (R), green (G) and blue (B) are to be connected as follows:

Connection of an RGB led tape

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 4 wires (+, red (R), green (G) and blue (B).

Connection of 2 RGB led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips
