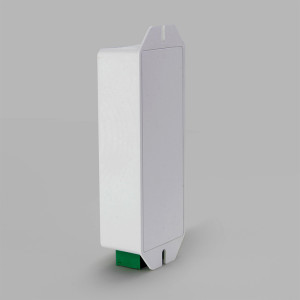

3-channel DMX led controller for RGB led strip

Ref : D3-CX   [#155]
€25.00

3-channel DMX led controller for led strips, spotlights and multicolored RGB projectors

Quantity
On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Accessoires controleurs

DMX signal amplifier 300 meters

DMX signal amplifier 300 meters

€25.00


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Strip type :   Multicolor (RGB)
Controller type :   DMX
 Controller only

This controller connects to your DMX console (D+, D- and GND) and allows you to control spotlights, projectors and RGB led strips.

Using the DMX512, DMX512 (1990), DMX512-A, RDM V1.0 (E1.20-2006 ESTA standard) standard, it is compatible with almost all DMX consoles or USB adapters on the market.

It uses 3 DMX channels to vary the light intensity from 0 (off) to 255 (full power) of red, green and blue to obtain a mixture of colors up to 16 million variants.

The LED strip or the light is controlled in PWM (Pulse Width Modulation) at 12 or 24V.

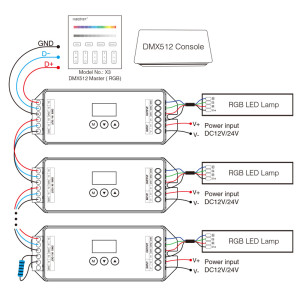

It is possible to chain up to 32 controllers.
If the signal becomes too weak due to the lengths of cable used to transport the DMX signal, an amplifier must be added (see list of accessories).
The signal cannot be amplified more than 5 times.

The controller is equipped with protections against short circuits, reverse polarity and overloads.

Product guaranteed for 3 years
Hardware guaranteed for 3 years.
Power supply 12 or 24V DC
Sealing Not waterproof IP20
Max power 6A per channel, 18A total: 216W at 12V, 432W at 24V
Modulation PWM, 2KHz
Input signal DMX 512, RDM
Number of channels 3
Protections short circuits, reverse polarity, overloads

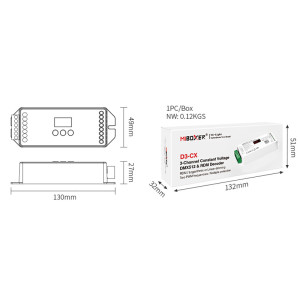

Controller dimensions 130 x 49 x 27mm
Temperature range -20 to 60°C
Weight 120 grams
Certifications CE, RoHS
Warranty 3 years
D1-CX DMX controller manual D1-CX DMX controller manual
