Multicolored RGB led strip 120 leds / m 1440 Lumens / m waterproof

Ref : SRGB120-IP65   [#63]
€61.88

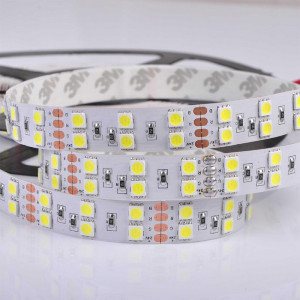

5 meter led strip SMD5050 24V multicolor RGB 120 leds / m 1440 Lumens / m, waterproof IP65

Quantity
On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 16.5A 200W

Power supply 12V 16.5A 200W

€16.09
RGB led controller with 10A remote control

RGB led controller with 10A remote control

€13.71
WiFi and Internet led controller

WiFi and Internet led controller

€19.71
Ltech 12A 3-channel DMX controller

Ltech 12A 3-channel DMX controller

€50.88


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Lighting
Color :   Multicolored (RGB)
Voltage :   24V
Waterproof :   Waterproof IP65
Lighting direction :   Front view

Multicolored RGB led tape for providing colorful lighting for a terrace or exterior requiring good light. It can take any color you want, including white.

The headband requires the use of an RGB controller to adjust the color and light intensity.

The tape is waterproof and can be used outdoors, outside swimming pools, pools and jacuzzi.

The 20mm wide strip is supplied with 24V DC and can be cut every 100mm.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 180W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Ribbon led
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply.
Add the power supply in the list of accessories.
Power supply + controller + ribbon kit
Led power supply + dimmer led + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 RGB controller with remote control
You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon
Led power supply + wifi led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 Wifi controller
With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon
Led power supply + DMX led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 RGB DMX controller
Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. 3 channels are needed to drive the led strip.
LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed for 5 years
Hardware guaranteed for 5 years.
Supply voltage 24V DC
Type of led SMD5050
Number of leds per meter 120
Colors multicolor RGB
Brightness 1440 Lumens per meter (in white)
Efficiency 50 Lumens per Watt
Consumption 28.8W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 80
Lighting angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Waterproof IP65
Dimensions 5000 x 20 x 3 mm
Cutout Every 100 mm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN55015: 2013 / A1: 2015
EN61547: 2009
EN61000-3-2: 2014
EN61000-3-3: 2013
Guarantee 5 years

Wiring of RGB multicolored ribbons

This strip requires an RGB controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the colors, including white.

The 4 wires, black (+), red (R), green (G) and blue (B) are to be connected as follows:

Connection of an RGB led tape

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 4 wires (+, red (R), green (G) and blue (B).

Connection of 2 RGB led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips
