Powerful white led strip variable 120 leds / m 2-in-1 2600 Lumens / m Waterproof

Ref : SCCT383822W-IP65 [#57]

Rating: Sign in to write a review

€69.67

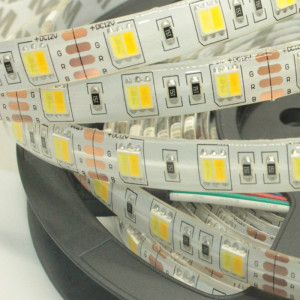

5 meter 24V variable white led strip (CCT) 120 leds / m 2-in-1, 2600 Lumens / m Waterproof IP65

Accessories to compose your kit

Led strips accessories

	Transformer for led strips 24V 8.33A 200W on terminal block	24V 8.33A 200W power supply €17.69
	CCT variable white led controller with 12A Radio frequency remote control	Variable white led controller with 12A remote control €18.33
	WiFi and Internet led controller and dimmer for white led ribbons, single colors, RGB, RGBW and RGB + CCT	WiFi and Internet led controller €21.68
	2-channel DMX led controller for led strips, spotlights and variable white spotlights	2-channel DMX led controller for dimmable white led tape €25.00

Products guaranteed for 3 or 5 years

Products shipped from France

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	No
Type of lighting :	Bright
Color :	Variable white
Voltage :	24V
Waterproof :	Waterproof IP65
Lighting direction :	Front view

Create your bright outdoor lighting by customizing the desired shade of white between warm white (2700 Kelvin) and cool white (6000 Kelvin).

The tape has a density of 120 leds / m 2-in-1, or the equivalent of 240 leds per meter, for increased brightness (2600 Lumens / m).

The headband requires the use of a variable white controller to adjust the white tint and light intensity.

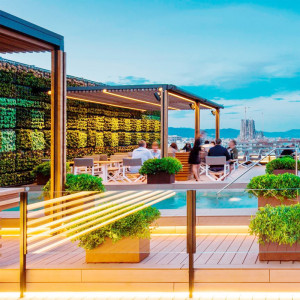

The tape can be used outdoors for lighting terraces, walkways, pergola and garden, outside the pool and jacuzzi.

The 10mm wide strip is supplied with 24V DC and can be cut every 50mm.

Compose your ready-to-use kit

Ribbon only	For the ribbon to work, you must have a minimum 24V 140W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit +	Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply. Add the power supply in the list of accessories.
Power supply + controller + ribbon kit + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 CCT controller with remote control You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 Wifi controller With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	To compose this kit, you must add to the accessories: - 1 power supply - 1 RGB DMX controller Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. 2 channels are needed to drive the led strip. LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Material guaranteed for 3 years.

Supply voltage	24V DC
Type of led	SMD 3838
Number of leds per meter	120 x 2 in 1
Shades of white	From cold white (6000 Kelvin) to warm white (2700 Kelvin)
Brightness	2600 Lumens per meter (in warm + cool white)
Efficiency	118 Lumens per Watt
Consumption	22W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	80

Lighting angle	120 °
Lifetime	50,000 hours (at 45 ° C)
Waterproofing	Waterproof IP65

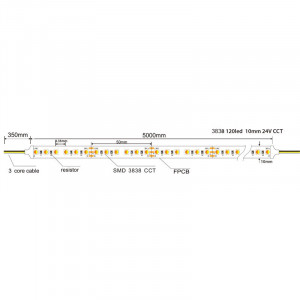

Dimensions	5000 x 10 x 32 mm
Cutout	Every 50 mm
Temperature range	- 25 to 45 ° C
PCB	1 oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015: 2013 / A1: 2015 EN61547: 2009 EN61000-3-2: 2014 EN61000-3-3: 2013
Guarantee	5 years

Wiring of white variable tapes (CCT)

This type of banner requires a variable white controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the shade of white.

The 3 wires, red (+), white (cold white / Cool White) and yellow (warm white / Warm white) are to be connected as follows:

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 3 wires (+, cold white (CW) and warm white (WW).

Connection of 2 variable white led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.
