ZIG ZAG multicolored dynamic effects led strip 60 leds / m - 3 leds / pixel

Ref : SHAPSPI60-IP20   [#97]

ZIG ZAG led strip of 5 meters Magic multicolored (dynamic effects) of 60 leds / m - 3 leds / pixel, not waterproof

On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 7A 84W

Power supply 12V 7A 84W


Products guaranteed for 3 or 5 years


Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Atmosphere and decor
Color :   Multicolor + dynamic effects
Voltage :   12V
Waterproof :   Not waterproof
Pixel size :   3 leds / pixel
Lighting direction :   Front view

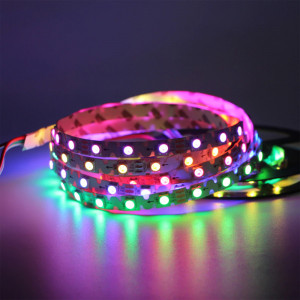

Led strip ZIG ZAG multicolored RGB with dynamic effects (Magic) for creating colorful mood lighting with active animations.
It allows you to obtain rainbow effects with gradients, chasers, scrolls and a whole multitude of other animations.
Depending on the controller used, you can make the ribbon react to the rhythm of the music, and even program your own animations, à la carte.

The strip requires the use of a specific controller for Magic LED strips.

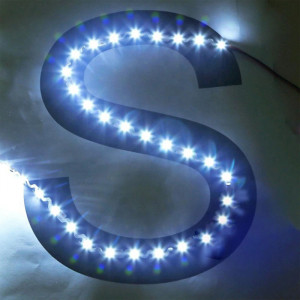

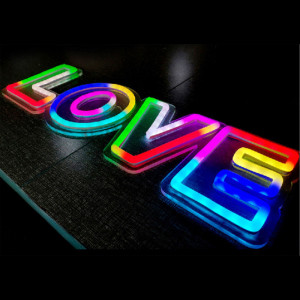

It can be folded sideways, which allows backlighting of illuminated signs by conforming to the shape of the letters.
It can be used for any decoration describing non-linear shapes.

The tape is not waterproof and can only be used indoors, excluding wet rooms (kitchens, bathrooms).

The 10mm wide strip is powered by 12V DC and can be cut every 50mm.

This ribbon is piloted by groups of 3 leds (1 pixel).
Led strips of 5 meters can be chained together using the clip connectors provided. The animation will extend over the total length of the connected strips, with however the limitation of the number of pixels managed by the chosen controller (see the characteristics of the controller according to your total length of strips).

Important: Be sure to supply each 5 meter ribbon with 12V (by connecting them directly to the power supply) independently of the controller. See the connection photo.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 90W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Ribbon led
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12V output of the power supply.
Add the power supply in the list of accessories.
Power supply + controller + ribbon kit
Led power supply + led controller + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 dynamic effects controller 300 programs with remote control
You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity and change the animations.
Power supply kit + Wifi controller + ribbon
Led power supply + wifi led controller + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 WiFi dynamic effects controller with remote control
With this complete kit, you will be able to turn on, off, vary the light intensity, select the animations, compose your programs, operate the ribbon to the rhythm of the music, with the remote control, in Wifi or with Google and Alexa voice assistants.
Power supply kit + DMX controller + ribbon
Led power supply + DMX led controller + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 DMX controller for dynamic effect led tape
Complete kit working in DMX (except console). The DMX controller allows you to control the led strip, pixel by pixel, in order to obtain à la carte animations, according to the DMX sequences programmed on your console.
3 channels are needed to drive a single pixel, or 60 channels per meter for this ribbon.
LTech brand controller intended for professionals for intensive and durable use.

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed 3 years
Material guaranteed for 3 years.
Supply voltage 12V DC
Type of led SMD5050
CI type TM809
Number of leds per meter 60
Number of CIs per meter 20
Number of leds per pixel 3
Colors multicolor RGB
Brightness 800 Lumens per meter (in white)
Efficiency 56 Lumens per Watt
Consumption 14.4W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 80
Lighting angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Not waterproof IP20
Dimensions 5000 x 10 x 2 mm
Cutout Every 50 mm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN55015: 2013 / A1: 2015
EN61547: 2009
EN61000-3-2: 2014
EN61000-3-3: 2013
Guarantee 3 years

Multicolored ribbons with dynamic effects (WS2811)

This strip requires a specific controller to run the light animation programs.

The 3 wires, red (+), green (DAT), and black or white (GND / -) are to be connected at the start of the tape (see the direction of the arrows on the tape) as follows:

Connection of a led strip with dynamic effects of type WS2811

When several 5-meter ribbons are chained one after the other, it is essential to connect the additional bands to the 12V power supply.

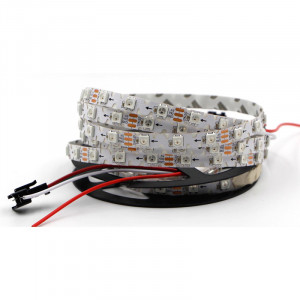

The coil has 3 wires, often connected to a clip-on connector (control circuit), as well as 2 additional white and red wires (power circuit), used to connect to the power supply.
Here is how to proceed with the wiring:

Connection of several led strips with dynamic effects of type WS2811

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between them. 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips
