ZIG ZAG led strip 60 leds / m 1120 Lumens / m for sign lighting

Ref : SHAP2835-60-IP20   [#95]

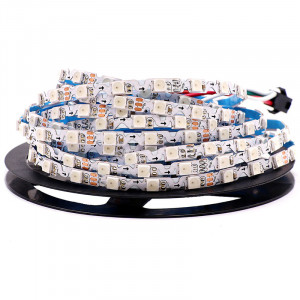

5 meters ZIG ZAG led strip sideways foldable SMD2835 12V 60 leds / m 1120 Lumens / m not waterproof IP20

In stock. Shipping within 1 to 2 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 16.5A 200W

Power supply 12V 16.5A 200W


Products guaranteed for 3 or 5 years


Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Atmosphere and decor
Color :   White
 Single color
Voltage :   12V
Waterproof :   Not waterproof
Lighting direction :   Front view

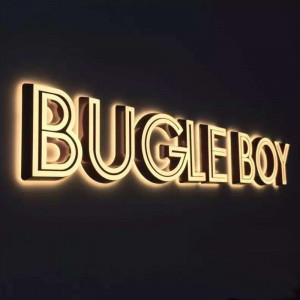

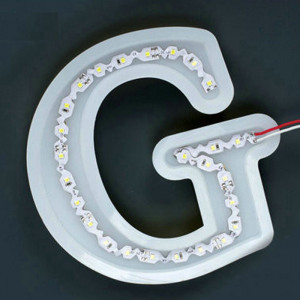

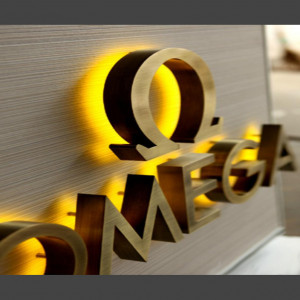

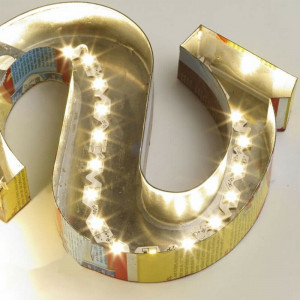

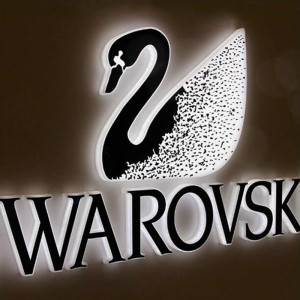

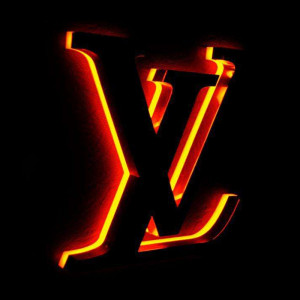

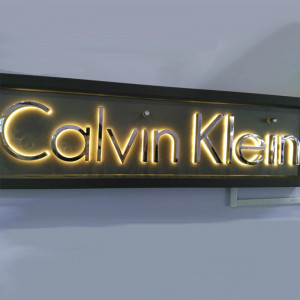

This ribbon can be folded sideways, which allows backlighting of illuminated signs by conforming to the shape of the letters.
It can be used for any decoration describing non-linear shapes.

With a brightness of 1120 Lumens per meter, the strip is powerful enough for a sign visible from afar.

The strip is powered by 12V DC and can be cut in groups of 3 LEDs, or every 5 cm.

Not waterproof, it can be used indoors, or in a completely waterproof sign.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 180W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Led ribbon
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12V output of the power supply.
Add the power supply in the list of accessories.

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed 3 years
Equipment guaranteed for 3 years intended for professionals and individuals for intensive use.
Supply voltage 12V DC
Type of led SMD 2835
Number of leds per meter 60
Colors Natural white 5000K
Warm white 3000K, cold white 7000K
red, green, blue, yellow, pink, purple, orange.
Brightness 1120 Lumens per meter (in cool white)
Efficiency 93 Lumens per Watt
Consumption 12W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 80
Lighting angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Not waterproof IP20
Dimensions 5000 x 8 x 1.5 mm
Cutout Every 5 cm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN 60598-2-20: 2015, EN 60598-1: 2015, EN 62471: 2008, EN 62493: 2015, EN 62031: 2008 + A1: 2013 + A2: 2015
Guarantee 3 years

Wiring of white ribbon with single color ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Connection of 2 led strips in parallel

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips

Choosing a led strip

How to choose the led strip best suited to your needs?

To quickly and easily find the led strip that best suits
your lighting project, consult our guide
