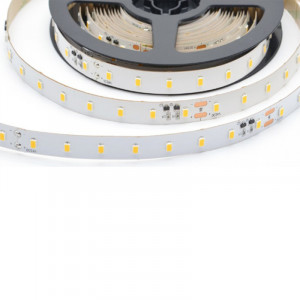

ULTRA-LOW CONSUMPTION LED STRIP 64 LEDS/M 2100 LUMENS/M Not waterproof

Ref : BC64 [#8]

Rating: Sign in to write a review

€54.08

5 meter led strip, 24V, not waterproof (IP20)

High efficiency of 182 Lumens/W
Powerful: 2100 Lumens per meter
Ultra-low consumption: 11.5W per meter

Accessories to compose your kit

Led strips accessories

	Transformer for 24V 5A 120W led strips on terminal block	24V 5A 120W power supply €11.46
	Led dimmer with remote control Radio frequency 12A	Led dimmer with 144W remote control €16.87
	WiFi and Internet led controller and dimmer for white led ribbons, single colors, RGB, RGBW and RGB + CCT	WiFi and Internet led controller €21.68
	DMX led controller for white or single color led strips, spotlights and spotlights	1 channel DMX led controller for white or single color led strip €25.00

Products guaranteed for 3 or 5 years

Products shipped from France

Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Ultra-low consumption :	Yes
Type of lighting :	Bright
Color :	White
Voltage :	24V
Waterproof :	Not waterproof
Lighting direction :	Front view

Derived from the latest technologies, this high efficiency LED strip delivers a brightness of 182 Lumens per Watt consumed, far ahead of conventional LED strips, with a yield of only between 90 and 105 Lumens per Watt.

With its best energy performance on the market, it is an ideal solution to halve your energy bill allocated to lighting.

Saving energy is a major issue today, both for the preservation of our planet and to cope with the constant increase in the price of electricity.

This powerful LED strip delivers a brightness of 2100 Lumens per meter.
It is used for lighting large rooms, large living rooms or in places where lighting must be consistent.

The strip is powered by 24V DC and can be cut in groups of 8 LEDs, i.e. every 125 mm.

The tint corresponds to daylight white (4000 Kelvin) but can also be ordered with a custom color temperature of 2700K, 3000K, 5000K and 6000K (specific order requiring a manufacturing and supply lead time of 20 to 30 days ).

Non-waterproof tape that can only be used indoors, excluding kitchens and bathrooms.

Choose a complete kit

Strip only	You must have a 230V AC / 12 or 24V DC power supply. The led strip plugs directly into the 12/24V output.
Power supply kit + ribbon +	Minimal kit to make your led strip work. It connects to the 230V mains and the LED strip to the 12/24V output of the power supply.
Kit power supply + drive + ribbon + +	This is a complete kit supplied with a remote control to turn on, turn off and dim the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon + +	Complete kit to turn on, turn off and vary the light intensity over WiFi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon + +	Complete kit working in DMX (excluding console). The controller allows you to turn on, off and vary the light intensity according to the signal sent by your DMX console. Only 1 channel is required to drive the led strip. LTech brand controller intended for professionals for intensive and long-lasting use.

Choose waterproofing

IP20Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), excluding kitchens and bathrooms.
IP65 Resists splashing water and damp environments. Can be installed in a kitchen, bathroom or outdoors.
IP68Immersible. Can be used in swimming pools, SPA or ponds.

Equipment guaranteed for 5 years intended for professionals and individuals for intensive use.

Power supply voltage	24V DC

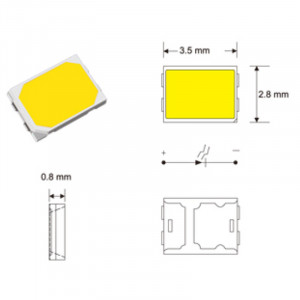

Led type	SMD 2835
Number of leds per meter	64
Tint of white	Natural White 4000 Kelvin
Brightness	2100 Lumens per meter
Efficacy	182 Lumens per Watt
Consumption	11.5W per meter
Dimmable	Yes (PWM)
Attenuation	2% after 6000 hours
CRI	80

Illumination angle	120°
Lifespan	50000 hours (at 45°C)
Sealing	Not waterproof IP20
Dimensions	5000 x 10 x 1.5mm
Cut	Every 125mm
Temperature range	-25 to 45°C
PCB	1oz (35u) copper
Adhesive	3M VHB
Certifications	CE, RoHS EN55015:2013/A1:2015 EN61547:2009 EN61000-3-2:2014 EN61000-3-3: 2013
Warranty	5 years

Wiring white and single color ribbons

These headbands, the simplest, have only 2 wires (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

They can be paired with a dimmer to turn on, off and vary the brightness with a remote control.

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to arrange several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or the controller.

Here is the wiring diagram of multiple strips with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to take when handling and installing a led strip

The led strips can be curved lengthwise by describing a minimum radius of 5 cm.
Under no circumstances can they be folded sideways.

If you need to make 90° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by welding flexible cable (flat cable) between the 2 sections.
