Ambient led strip 60 leds / m 320 Lumens / m submersible IP68

Ref : S1C3528-60-IP68   [#29]
€33.69

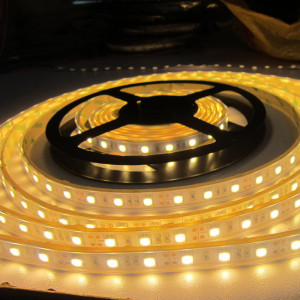

5 meter led strip SMD3528 12V 60 leds / m 320 Lumens / m submersible IP68

Color
Quantity
On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 4A 48W

Power supply 12V 4A 48W

€7.29
Led dimmer with 144W remote control

Led dimmer with 144W remote control

€16.87
WiFi and Internet led controller

WiFi and Internet led controller

€21.68
1 channel DMX led controller for white or single color led strip

1 channel DMX led controller for white or single color led strip

€25.00


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Atmosphere and decor
Color :   White
 Single color
Voltage :   12V
Waterproof :   Submersible IP68
Lighting direction :   Front view

This economical led tape provides lighting of 320 Lumens per meter in white.

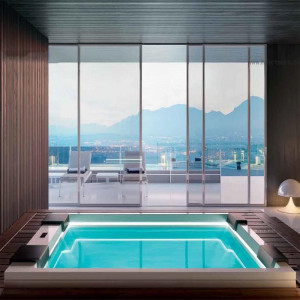

It is intended for the mood lighting of   a modern basin ,  jacuzzi or bathtub.

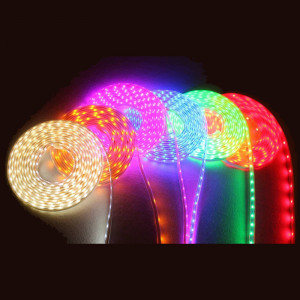

You can easily achieve your light atmosphere in white, or in a single color with this led strip.

The strip is supplied with 12V DC and can be cut in groups of 3 LEDs, or every 5 cm.

Its IP68 waterproofing allows it to be submerged and is resistant to chlorine and salt water.
If the tape has to be cut, make sure it is completely watertight, for example using a special swimming pool silicone.

Its very low voltage in 12V allows the use of this led tape in swimming pool.

Compose your ready-to-use kit

Ribbon only
Led tape
For the ribbon to work, you must have a   12V 30W minimum power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply kit + ribbon
Led power supply + Led tape
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply.
Add the power supply  to the list of accessories.
Power supply kit + dimmer + ribbon
Led power supply +  led dimmer + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 dimmer with remote control
You will get a complete kit supplied with a  remote control  to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon
Led power supply +  wifi led dimmer + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 WiFi dimmer
With this complete kit, you will be able to turn on, off and vary the light intensity in  Wifi  using your phone or tablet.
Power supply kit + DMX dimmer + ribbon
Led power supply +  DMX led dimmer + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 DMX dimmer
Complete kit working in DMX (except console). The  DMX controller  allows you to turn on, off and vary the light intensity according to the signal sent by your DMX console. 1 single channel is necessary to drive the led strip.
LTech brand controller intended for professionals for  intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resistant to water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed for 5 years
Equipment guaranteed for 5 years intended for professionals and individuals for intensive use.
Supply voltage 12V DC
Led type SMD 3528
Number of leds per meter 60
Colors Natural white 4000K
Warm white 2700K, cold white 6000K
red, green, blue, yellow.
Brightness 320 Lumens per meter (in white)
Efficiency 66 Lumens per Watt
Consumption 4.8W per meter
Dimmable Yes (PWM)
Mitigation 2% after 6000 hours
SHOUT 80
Illumination angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Sealing IP68
Dimensions 5000 x 10 x 5 mm
Cutout Every 5 cm
Temperature range -25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN55015: 2013 / A1: 2015
EN61547: 2009
EN61000-3-2: 2014
EN61000-3-3: 2013
Guarantee 5 years

Wiring of white ribbon with single color

ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Connection of 2 led strips in parallel

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips

Choosing a led strip

How to choose the led strip best suited to your needs?

To quickly and easily find the led strip that best suits
your lighting project, consult our guide
