DMX XL Amplifier Manual
DMX signal amplifier 300 meters
Ref : AMP-DMX-XL [#158]
€25.00
Amplifier allowing the use of up to 300 meters of cable and 128 devices without loss of DMX signal
Products guaranteed for 3 or 5 years
Products shipped from France
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Controller type : | DMX |
This amplifier connects to your DMX console to connect controllers up to 300 meters away.
It accepts up to 128 devices.
There is no more signal loss and you can use your device safely.

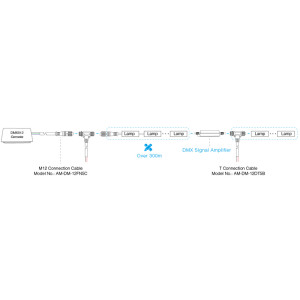

It is also possible to connect several controllers together, up to a total of 5 amplifiers on the entire lighting device.
It is IP66 waterproof, which allows it to be installed without constraint in a humid environment.
Hardware guaranteed for 3 years.
| Power supply | 12 or 24V DC |
| Sealing | Waterproof IP66 |
| DMX signal | DMX 512, RS-485 |

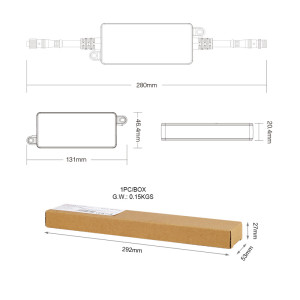

| Controller dimensions | 131 x 46.4 x 20.4mm |
| Dimensions with sockets | 280 x 46.4 x 20.4mm |
| Temperature range | -20 to 45°C |
| Weight | 150 grams |
| Certifications | CE, RoHS |
| Warranty | 3 years |
