White variable COB led strip 10mm 640 leds / m 1100 Lumen

Ref : COB10MM-CCT   [#45]
€70.83

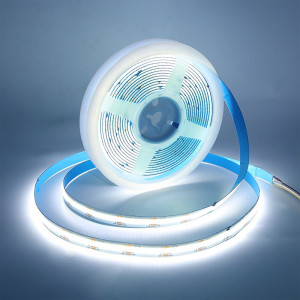

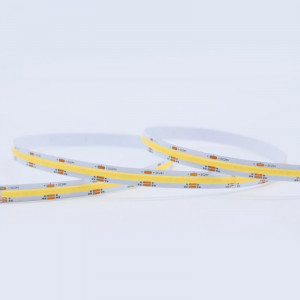

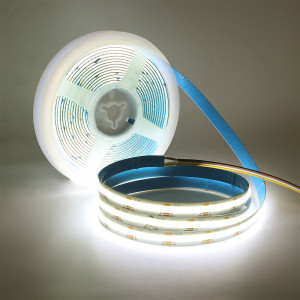

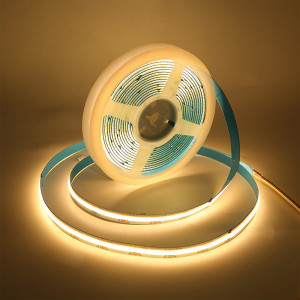

Led strip of 5 meters, COB 24V 640 leds / m 1100 Lumens / m 10 mm wide

Quantity
On demand. Shipping 20 to 30 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 7A 84W

Power supply 12V 7A 84W

€14.58
Variable white led controller with 12A remote control

Variable white led controller with 12A remote control

€18.33
WiFi and Internet led controller

WiFi and Internet led controller

€21.68
2-channel DMX led controller for dimmable white led tape

2-channel DMX led controller for dimmable white led tape

€25.00


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Lighting
Color :   Variable white
Voltage :   24V
Lighting direction :   Front view

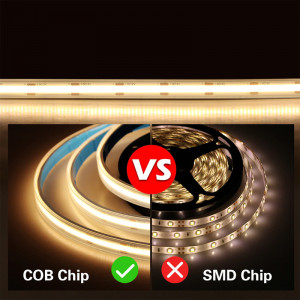

This COB led strip allows lighting with totally equal distribution over its entire length.
It allows you to modify the shades of white ranging from warm white (2700 Kelvin) to cold white (6500 Kelvin).
You will then get exactly the white that suits you best, according to your wishes.

The banner requires the use of a CCT controller (variable white).
See wiring in the photo.

The tape is not waterproof and can only be used indoors.

The 10mm wide strip is supplied with 24V DC and can be cut every 25mm.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 80W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Ribbon led
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply.
Add the power supply in the list of accessories.
Power supply + controller + ribbon kit
Led power supply + dimmer led + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 controller with remote control
You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon
Led power supply + wifi led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 Wifi controller
With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon
Led power supply + DMX led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 CCT DMX controller
Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. Only 1 channel is needed to drive the led strip.
LTech brand controller intended for professionals for intensive and durable use .

Choose waterproofing

IP20 Not waterproof. Suitable for indoor use (living rooms, bedrooms, verandas), except kitchens and bathrooms.
IP65 Resists water splashes and humid environments. Can be installed in a kitchen, bathroom or outdoors.
IP68 Submersible. Can be used in swimming pools, SPA or ponds.

Product guaranteed 3 years
Material guaranteed for 3 years.
Supply voltage 24V DC
Type of led COB
Number of leds per meter 640 (320 cool white and 320 warm white)
Colors Blancvariable from 2700 to 6500 Kelvin.
Brightness 1100 Lumens per meter (in white)
Efficiency 91 Lumens per Watt
Consumption 12W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 80
Lighting angle 180 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Not waterproof IP20

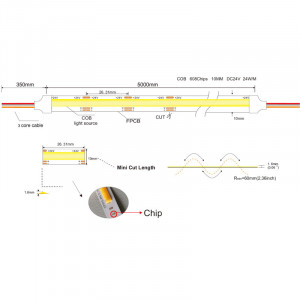

Dimensions 5000 x 10 x 1.6 mm
Cutout Every 25 mm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN55015: 2013 / A1: 2015
EN61547: 2009
EN61000-3-2: 2014
EN61000-3-3: 2013
Guarantee 3 years

Wiring of white variable tapes (CCT)

This type of banner requires a variable white controller to be driven. It allows you to turn on, off, and vary the light intensity as well as the shade of white.

The 3 wires, red (+), white (cold white / Cool White) and yellow (warm white / Warm white) are to be connected as follows:

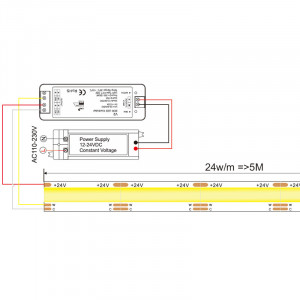

Connection of a variable white led tape

Wiring diagram for several strips whose total length exceeds 5 meters. The cable used is 3 wires (+, cold white (CW) and warm white (WW).

Connection of 2 variable white led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips

Choosing a led strip

How to choose the led strip best suited to your needs?

To quickly and easily find the led strip that best suits
your lighting project, consult our guide
