COB led strip 4mm 480 leds / m 525 Lumens / m

Ref : COB4MM   [#42]
€29.17
Color
Quantity
In stock. Shipping within 1 to 2 days.

Accessories to compose your kit

Led strips accessories

Power supply 12V 4A 48W

Power supply 12V 4A 48W

€7.29
Led dimmer with 144W remote control

Led dimmer with 144W remote control

€16.87
WiFi and Internet led controller

WiFi and Internet led controller

€21.68
1 channel DMX led controller for white or single color led strip

1 channel DMX led controller for white or single color led strip

€25.00


Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria   What are the criteria for selecting an LED strip?

Ultra-low consumption :   No
Type of lighting :   Atmosphere and decor
Color :   White
 Single color
Voltage :   12V
Waterproof :   Not waterproof
Lighting direction :   Front view

This COB led strip allows you to create a light decoration with totally equal diffusion over its entire length.

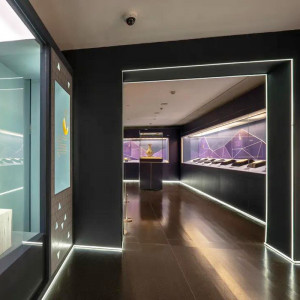

A modern decor present in contemporary homes, lobbies, hotels or to enhance a staircase.

The only 4mm wide strip is powered by 12V DC and can be cut every 25mm.

Not waterproof, it can only be used indoors.

Compose your ready-to-use kit

Ribbon only
Ribbon led
For the ribbon to work, you must have a minimum 12V 30W power supply . If you don't already have one, you need to add a power supply to the must-have accessories. Otherwise, you can purchase the ribbon on its own.
Power supply + ribbon kit
Led power supply + Led ribbon
Minimal kit to operate your led strip. It connects to the 230V sector and the led strip to the 12 / 24V output of the power supply.
Add the power supply in the list of accessories.
Power supply + drive + ribbon kit
Led power supply + dimmer led + Led tape
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 dimmer with remote control
You will get a complete kit supplied with a remote control to turn on, off and vary the light intensity using the radio-frequency remote control.
Power supply kit + Wifi dimmer + ribbon
Led power supply + wifi led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 Wifi dimmer
With this complete kit, you can switch on, off and vary the light intensity in Wifi using your phone or tablet.
Power supply kit + DMX dimmer + ribbon
Led power supply + DMX led dimmer + Led ribbon
To compose this kit, you must add to the accessories:
  • - 1 power supply
  • - 1 DMX dimmer
Complete kit working in DMX (except console). The DMX controller allows you to switch on, off and vary the light intensity according to the signal sent by your DMX console. Only 1 channel is needed to drive the led strip.
LTech brand controller intended for professionals for intensive and durable use .

Product guaranteed 3 years
Material guaranteed for 3 years.
Supply voltage 12V DC
Type of led COB
Number of leds per meter 480

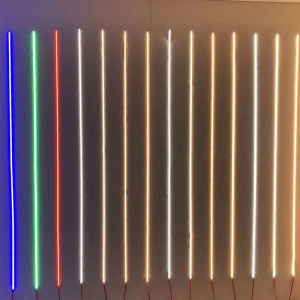

Colors Natural white 4000K
Warm white 2700K, cold white 6000K
red, green, blue, yellow.
Brightness 525 Lumens per meter (in white)
Efficiency 105 Lumens per Watt
Consumption 5W per meter
Dimmable Yes (PWM)
Attenuation 2% after 6000 hours
CRI 90
Lighting angle 120 °
Lifetime 50,000 hours (at 45 ° C)
Waterproofing Not sealed IP20

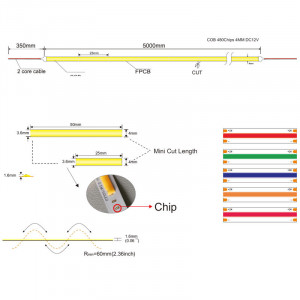

Dimensions 5000 x 4 x 1.6 mm
Cutout Every 25 mm
Temperature range - 25 to 45 ° C
PCB 1 oz (35u) copper
Adhesive 3M VHB
Certifications CE, RoHS
EN55015: 2013 / A1: 2015
EN61547: 2009
EN61000-3-2: 2014
EN61000-3-3: 2013
Guarantee 3 years

Wiring of white ribbon with single color

ribbons

These headbands, the simplest, only have 2 threads (+ and -).
They can be connected directly to the 12 or 24V power supply. In this case, the wall switch in your home will be used to turn the lighting on and off.

Connection of a single color led tape on power supply

They can be coupled to a dimmer to turn on, off and vary the brightness with a remote control.

Connection of a single color led tape with dimmer

With the exception of certain models (specified in the product sheet), LED strips can only have a maximum length of 5 meters.
Beyond this length, there would be a loss of light intensity after the first 5 meters.

To overcome this, it is possible to have several lengths of 5 meters (or less), one after the other, by connecting them in parallel to the power supply or to the controller.

Connection of 2 led strips in parallel

Here is the wiring diagram of several bands with the use of a dimmer. The latter will act on all the ribbons, including those connected after the amplifier.

Connection of 2 led strips in parallel with amplifier

Precautions to be taken when handling and installing an led tape

The led strips can be bent lengthwise by describing a radius of at least 5 cm.
Under no circumstances can they be folded sideways.

If you have to make 90 ° angles, it is imperative to cut the tape into sections and connect them, either with a suitable angle connector, or better, by soldering flexible cable (flat ribbon) between the 2 sections.

led strips with 90 ° angles

Do not bend the led strips or subject them to distortion:
Precautions to take for the manipulation of led strips

Choosing a led strip

How to choose the led strip best suited to your needs?

To quickly and easily find the led strip that best suits
your lighting project, consult our guide
