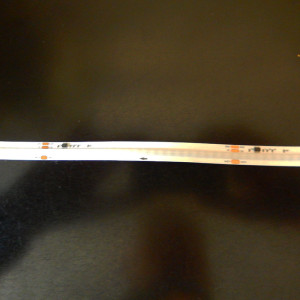

COB LED strip with dynamic effects 720 LEDs/m - 36 LEDs/pixel - 24V

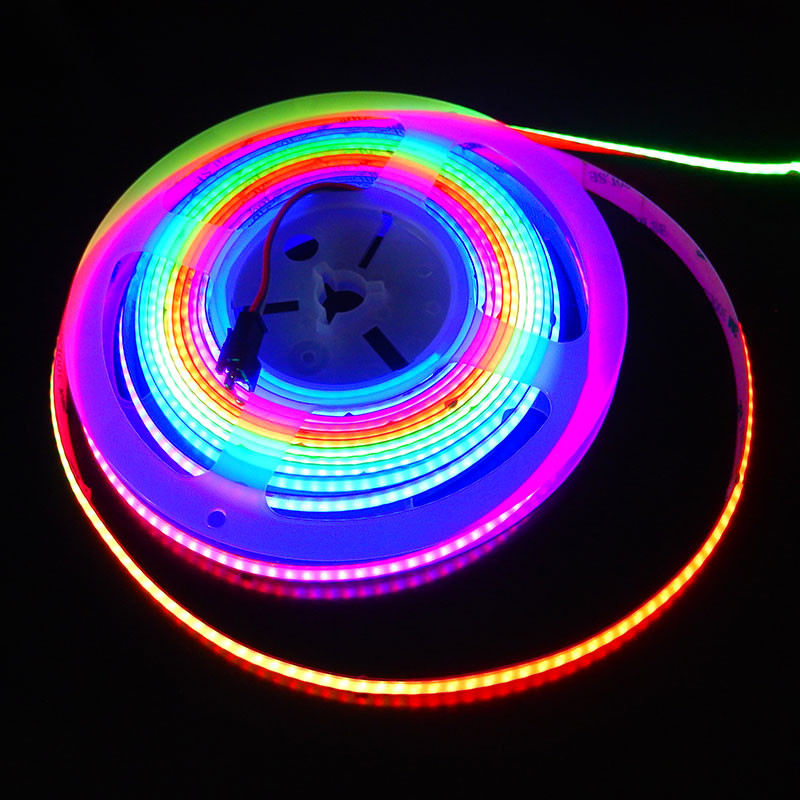

COB RGB multicolor led strip with dynamic effects (Magic) allowing you to create colorful ambient lighting with active animations.
It can produce rainbow effects with gradients, chase effects, scrolling, and a whole variety of other animations.
Depending on the controller used, you can make the strip react to the rhythm of music, and even program your own custom animations.

The strip requires the use of a specific controller for Magic led strips.

The strip is not waterproof and can only be used indoors, away from wet rooms (kitchens, bathrooms).

The 12.5 mm wide strip is powered by 24V DC and can be cut every 50 mm.

The control of this strip is done by groups of 36 leds (1 pixel of 5 cm).
5-meter led strips can be chained together using the supplied clip connectors. The animation will continue along the total length of the connected strips, with the limitation of the number of pixels managed by the chosen controller (see the controller’s specifications depending on the total length of your strips).

Important: Make sure to power each 5-meter strip with 24V (by connecting them directly to the power supply) independently of the controller. See the connection photo.

Build your ready-to-use kit

Strip only	For the strip to work, you need a power supply of at least 24V 80W. If you do not already have one, you must add a power supply to the essential accessories. Otherwise, you can purchase the strip alone.
Power supply + strip kit +	Minimal kit to operate your led strip. It connects to the 230V mains and the led strip to the 12/24V output of the power supply. Add the power supply to the accessories list.
Power supply + controller + strip kit + +	To build this kit, you must add to the accessories: - 1 power supply - 1 dynamic effects controller with 300 programs and remote control You will get a complete kit supplied with a remote control to turn on, turn off, dim, and change animations.
Power supply + Wifi controller + strip kit + +	To build this kit, you must add to the accessories: - 1 power supply - 1 Wifi dynamic effects controller with remote control With this complete kit, you can switch on, off, dim, select animations, create programs, operate the strip to the rhythm of music, with the remote control, via Wifi or with Google and Alexa voice assistants.
Power supply + DMX controller + strip kit + +	To build this kit, you must add to the accessories: - 1 power supply - 1 DMX controller for dynamic effects led strips Complete kit operating in DMX (excluding console). The DMX controller allows you to control the led strip, pixel by pixel, to achieve custom animations based on the DMX sequences programmed on your console. 3 channels are required to control a single pixel, i.e. 60 channels per meter for this strip. Controller by LTech brand intended for professionals for intensive and long-lasting use.

Multicolor dynamic effect strips (WS2811)

This strip requires a specific controller to run the light animation programs.

The 3 wires, red (+), green (DAT), and black or white (GND/-) must be connected at the start of the strip (see the arrows on the strip) as follows:

When several 5-meter strips are chained one after another, it is essential to connect the additional strips to the 12V power supply.

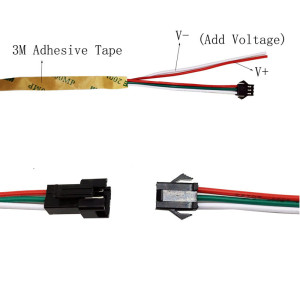

The coil has 3 wires, often connected to a clip connector (control circuit), as well as 2 additional wires, white and red (power circuit), used to connect to the power supply.

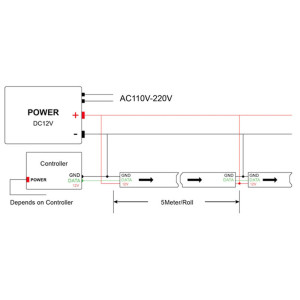

Here is how to do the wiring:

Precautions when handling and installing a led strip

Led strips can be bent lengthwise with a minimum radius of 5 cm.
They must never be bent sideways.

If you need to make 90° angles, it is necessary to cut the strip into sections and connect them either with a suitable angle connector, or preferably by soldering flexible cable (flat ribbon) between the 2 sections.

Do not bend the led strips or subject them to distortion:
