Music controller for LED strips with dynamic effects

Ref :    [#185]
€19.80
   Tax excluded
  • Allows you to control LED strips with dynamic effects to the rhythm of the music
  • Contains 18 musical animations and 180 non-musical programs
  • Musical synchronization via built-in microphone or external source
Quantity
On demand. Shipping 20 to 30 days.



Products guaranteed for 3 or 5 years

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Strip type :   Dynamic effects
Controller type :   Bluetooth
 Controller only
Multi zones :   No
Voice assistants :   No

The SP107E LED controller is a versatile music controller for addressable LED strips, operated via Bluetooth and a mobile app.
It supports a wide range of LEDs and offers light effects synchronized with music for dynamic and customizable installations.

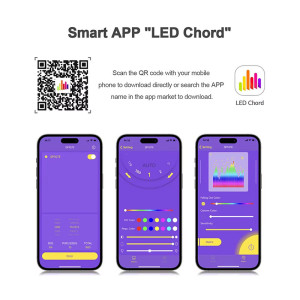

It can control up to 960 IC LEDs (including ws2811, ws2812b, SK6812, etc.) and provides a Bluetooth connection with control through the "LED Chord" app, compatible with iOS (version 10+) and Android (version 4.4+). Two audio input modes are available: built-in microphone or AUX IN jack, allowing synchronization of light effects with the sound environment.

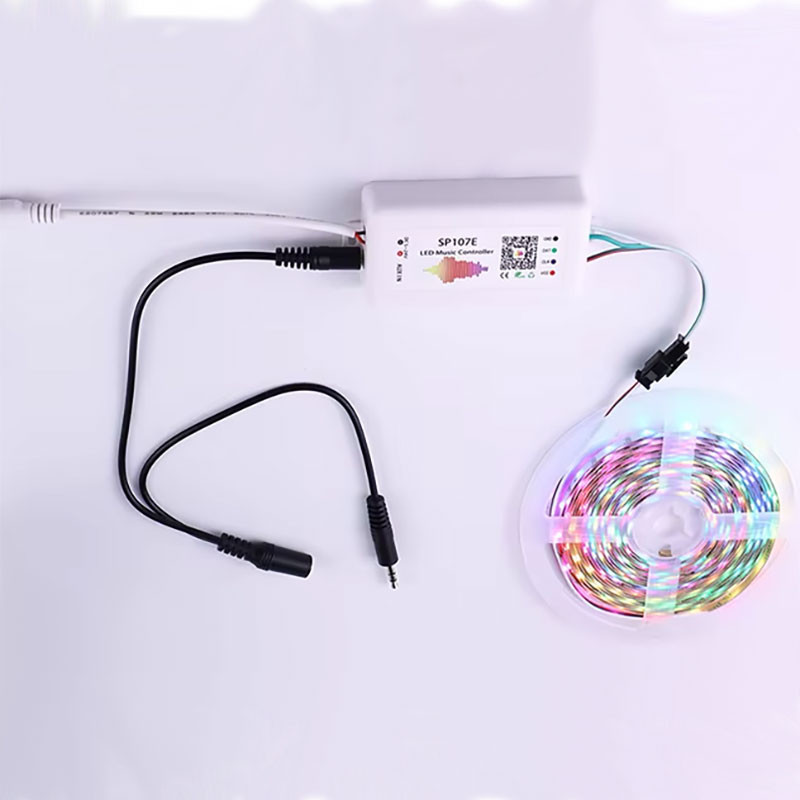

Installation: simply connect the controller to the LED strip, the audio source (if needed), and the proper power supply (5–24V DC). The mobile app allows selecting effects, adjusting settings, and controlling the installation remotely.

Product guaranteed 5 years
Hardware guaranteed 5 years.
Power supply 5, 12 or 24V DC
Waterproof rating Not waterproof IP30

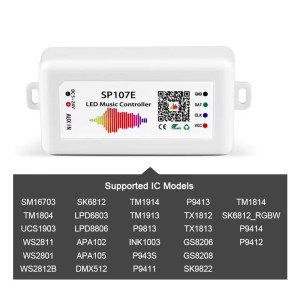

Signal SPI: WS2811, WS2801, WS2812B, SM16703, TM1804, UCS1903, SK6812, LPD6803, LPD8806, APA102, APA105, DMX512, TM1914, TM1913, P9813, INK1003, P943S, P9411, P9413, TX1712, TX1813, GS8206, GS8208, SK9822, TM1814, P9414 and P9412
Number of pixels 960
Controller dimensions 85 x 45 x 22 mm
Transmission Bluetooth
Application Led Chord
Compatibility Android 4.4 or higher, iOS 10 or higher
Temperature range -20 to 60° C
Weight 130 grams
Certifications CE, RoHS
Warranty 5 years
