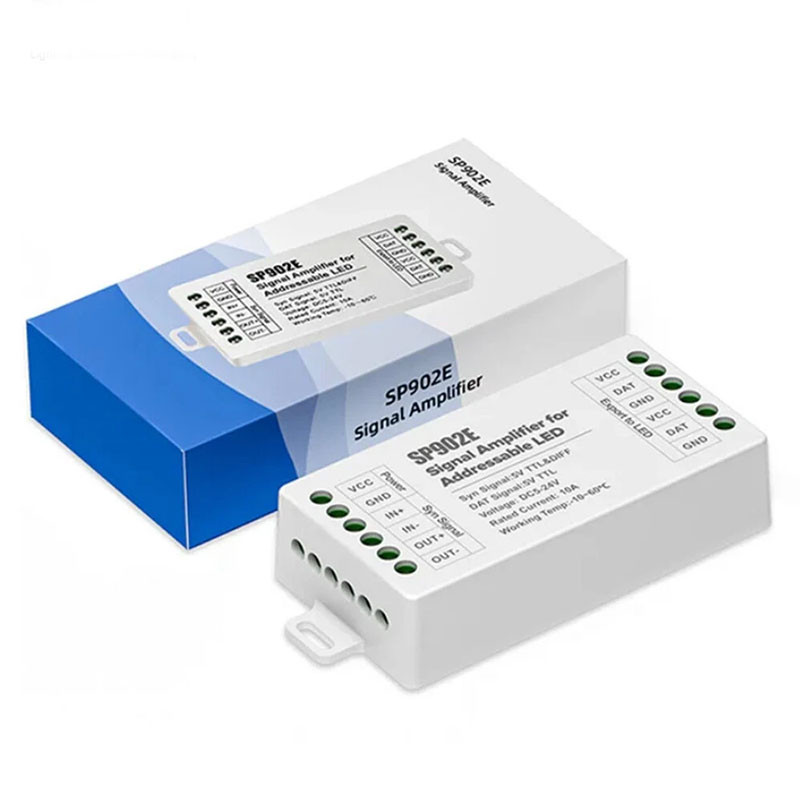

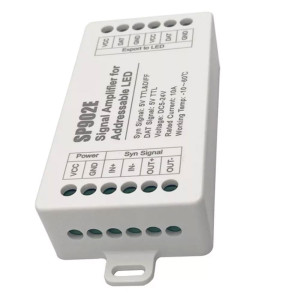

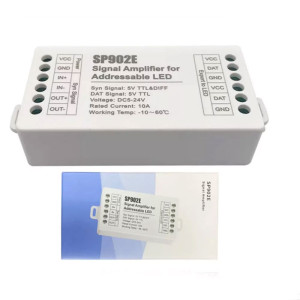

2-output signal amplifier for LED strip with dynamic effects
Ref : SP902E [#184]
€9.95
- Amplifier for driving two LED strips with dynamic effects (SPI signal)
- Can be used in cascade to extend the maximum cable distance beyond 5 to 7 meters
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Dynamic effects |
| Controller type : | Controller only |

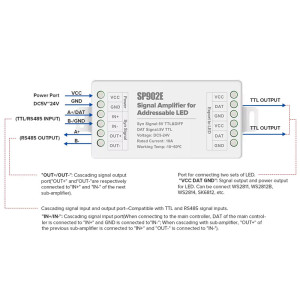

This amplifier connects to the output of your SPI controller (dynamic effects or Magic strips). It amplifies the control signal to operate up to 2 led strips with the same effects.
The cable length between the amplifier outputs is 5 to 7 meters max for 60 leds/m or 2 meters for 144 leds/m.
It is best to use shielded cable for long lengths.

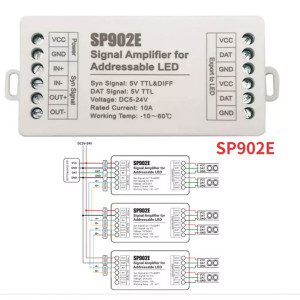

For longer distances, use several amplifiers placed every 5 meters to avoid signal loss between the controller and the start of the led strip.
Each led strip must be powered separately (5, 12 or 24V).
Equipment guaranteed for 5 years.
| Power supply | 5, 12 or 24V DC |
| Waterproof rating | Not waterproof IP20 |
| Signal | SPI: WS2812B, WS2811, SK6812, SK6812-RGBW, SM16703, WS2813, WS2815, CS881 |
| Admissible power | 10A max |

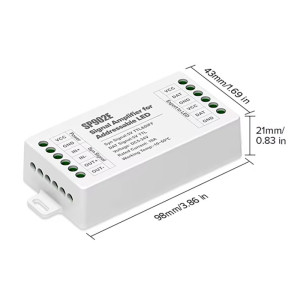

| Controller dimensions | 98 x 43 x 21 mm |
| Temperature range | -20 to 60° C |
| Weight | 250 grams |
| Certifications | CE, RoHS |
| Standards | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 EN 62368-1:2020+A11:2020 |
| Warranty | 5 years |
