SPI amplifier manual model SA6
6-output signal amplifier for dynamic LED strip effects
Ref : AMPSA6 [#180]
€26.00

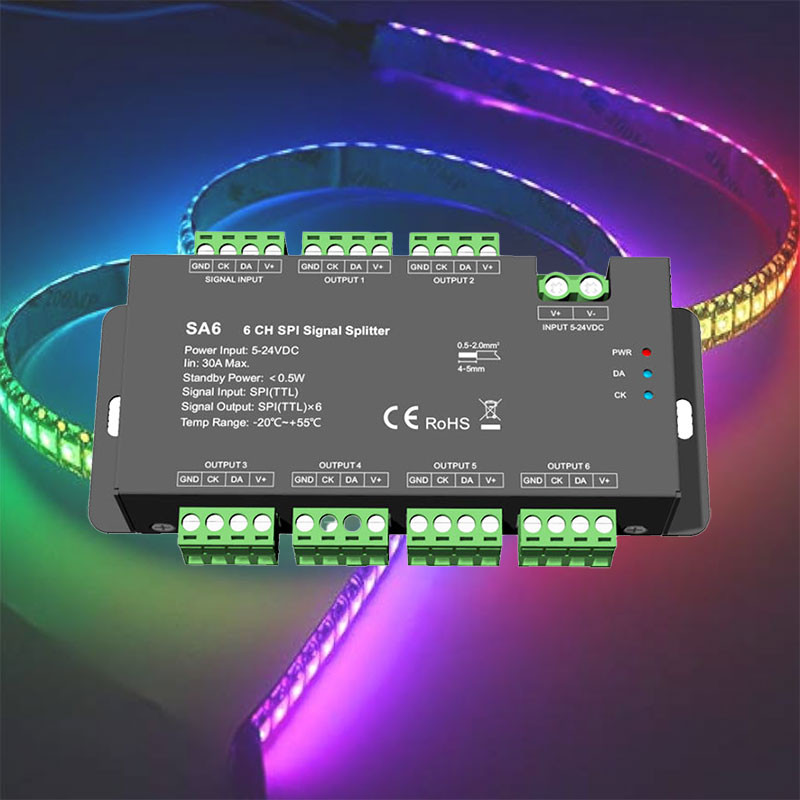

Amplifier for driving 6 LED strips with dynamic effects, SPI signal
Products guaranteed for 3 or 5 years
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Dynamic effects |
| Controller type : | Controller only |

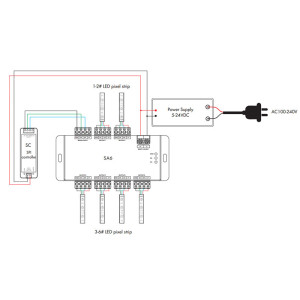

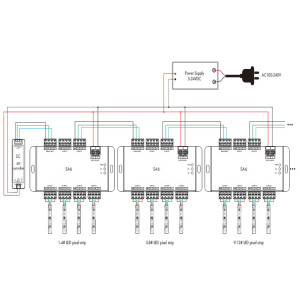

This amplifier connects to the output of your SPI controller (dynamic effect or Magic LED strips). It amplifies the control signal to drive up to 6 LED strips with the same effects.
The cable length between the amplifier outputs is a maximum of 7 meters for 60 LEDs/m or 2 meters for 144 LEDs/m.
Each LED strip must be powered separately (5, 12 or 24V).
Equipment guaranteed for 3 years.
| Power supply | 5, 12 or 24V DC |
| Waterproof rating | Not waterproof IP20 |
| Signal | SPI |
| Maximum admissible power | 30A max |
| Controller dimensions | 145 x 75 x 35 mm |
| Temperature range | -20 to 55° C |
| Weight | 260 grams |
| Certifications | CE, RoHS, EMC, LVD |
| Standards | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 EN 62368-1:2020+A11:2020 |
| Warranty | 5 years |
