160° PIR presence detector for automatic switching on of LED strips

Ref : PIRRKF   [#176]
€19.00
   Tax excluded
  • 160° detection
  • 10 meter range
  • Darkness adjustment from 3 to 2000 Lux
  • Adjustable time delay from 10 seconds to 7 minutes
  • Indoor and outdoor use
Quantity
On demand. Shipping 20 to 30 days.



Products guaranteed for 3 or 5 years

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Controller type :   Presence detector

Infrared presence detector with 160° coverage, up to 10 meters range.
It allows automatic switching on and off of your lighting when a presence is detected, with an adjustable timer from 10 seconds to 7 minutes.

Switching is done by relay capable of handling up to 1200W.

The detector must be powered by 230V AC.

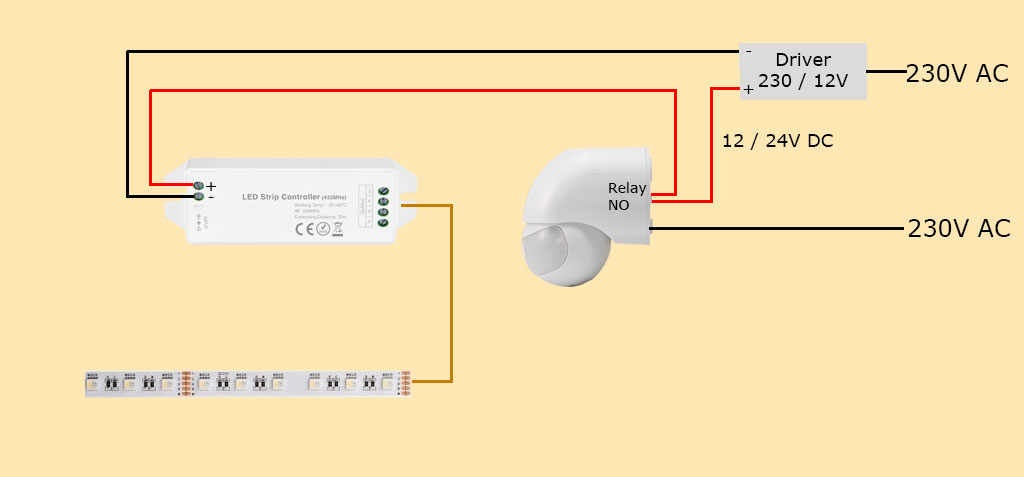

The switching should be done between the output of the 230/12V (or 24V) power supply and the LED controller:

Connection of a motion detector to an LED circuit

Product guaranteed for 3 years
Hardware guaranteed for 3 years.
Input voltage 230V AC
Output Relay switching
Switching power Up to 1200W
Waterproofing Waterproof IP44
Standby power consumption 0.45W
Detection angle 160°
Max range in open field 10 meters
Mounting type surface mounting
Darkness settings 3 to 2000 Lux
Time delay settings 10 seconds to 7 minutes
Dimensions (W x H) 63 mm x 92 mm
Temperature range -20 to 60° C
Weight 160 grams
Certifications CE, RoHS
Warranty 3 years
