FUTB0 led dimmer manual
2.4GHz wireless wall remote control for RGB/RGBCCT led controller
Ref : FUTB0 [#150]
€21.67

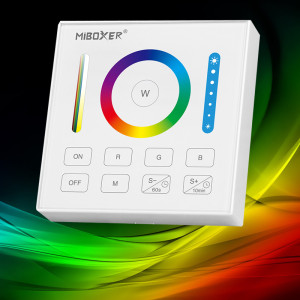

Wall-mounted remote control for lamps, spotlights and multicolor led controller (RGB) and color + variable white (RGBCCT). Communicates with 2.4 GHz wireless controllers.
Accessories to compose your kit
Accessoires controleurs
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
2.4GHz 15A RF receiver. Works with white, single color, RGB, RGBW and RGB+CCT led strips. |
15A controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT |
|
2.4 GHz 12A RF receiver. |
12A controller for RGB+CCT led strips |
|
WIFI + Bluetooth + RF 2.4 GHz 15A receiver. |
15A WIFI + RF controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT |
|
ZIGBEE + Bluetooth + RF 2.4 GHz 15A receiver. |
ZIGBEE + RF 15A controller for led strips 1 color, variable white, RGB, RGBW and RGB+CCT |
Products guaranteed for 3 or 5 years
Products shipped from France
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Multicolor (RGB) |
| Multicolor + Variable White (RGB+CCT) | |
| Multicolor + white (RGBW) | |
| Controller type : | Remote control only |
| RF 2.4 GHz | |
| Wall | |
| Multi zones : | No |
Wall-mounted remote control for adjusting colors, the tint of white between warm white and cold white, and dimming the light intensity of lamps, spotlights and RGB, RGBW and RGBCCT LED controllers operating at 2.4 GHz.

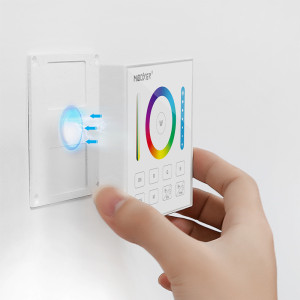

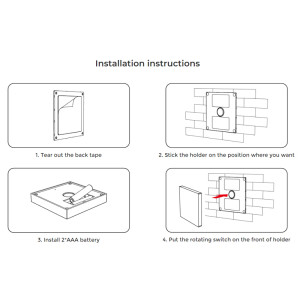

It is installed on a wall and controls your lighting over a distance of 30 meters (in an open field) and passes through walls.
It allows you to turn on, off and dim your lighting thanks to its touch wheel.

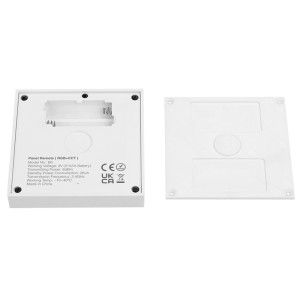

It works with 2 AAA batteries (not included) alkaline or rechargeable
For led strips, it requires the use of one or more receivers (see list of accessories).
Compatible Wifi and Google and Alexa voice assistants with the use of the Wifi adapter.
Available in black and white.
Hardware guaranteed for 3 years.
| Power supply | 3V DC, 2 AAA batteries (not included) |
| Sealing | Not waterproof IP20 |
| Transmission | Radio frequency 2.4 GHz (2400 to 2483.5 MHz), 6 dBm |
| Modulation | CFSK |
| Distance | 30 meters in free field |

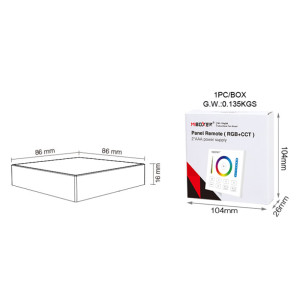

| Drive dimensions | 86x86x16mm |
| Temperature range | -10 to 40°C |
| Weight | 135 grams |
| Certifications | CE, RoHS |
| Warranty | 3 years |
