FUTB1 led dimmer manual
Wall-mounted 4-zone touch remote control for 2.4 GHz wireless led dimmer
Ref : FUTB1 [#146]
€22.42
Wireless wall-mounted led dimmer. Pilot up to 4 zones. Communicates with 2.4 GHz wireless controllers.
Accessories to compose your kit
Accessoires controleurs
Wifi adapter, Internet box and Google and Alexa voice assistants for Mi-light and Futlight controllers |
Wifi adapter and Google and Alexa voice assistants |
|
2.4GHz 15A RF receiver. Works with white, single color, RGB, RGBW and RGB+CCT led strips. |
15A controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT |
|
WIFI + Bluetooth + RF 2.4 GHz 15A receiver. |
15A WIFI + RF controller for 1 color led strips, variable white, RGB, RGBW and RGB+CCT |
|
ZIGBEE + Bluetooth + RF 2.4 GHz 15A receiver. |
ZIGBEE + RF 15A controller for led strips 1 color, variable white, RGB, RGBW and RGB+CCT |
|
2.4GHz 12A RF receiver. Works with white or single color led strips |
12A controller for white or single color led strips |
Products guaranteed for 3 or 5 years
Products shipped from France
Satisfied or refunded
Return within 14 days
Characteristics - Selection criteria
| Strip type : | Single color |
| Controller type : | Remote control only |
| RF 2.4 GHz | |
| Wall | |
| Multi zones : | Yes |

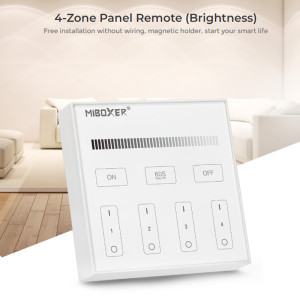

Wall-mounted remote control for dimming lamps, spotlights and single-color led controllers operating at 2.4 GHz.

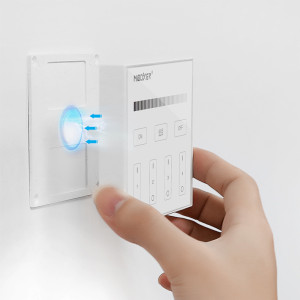

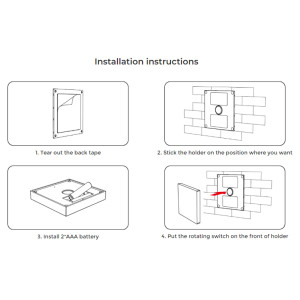

It is installed on a wall and controls your lighting over a distance of 30 meters (in an open field) and passes through walls.
It allows you to turn on, off and vary the brightness of your lighting thanks to its touch wheel.

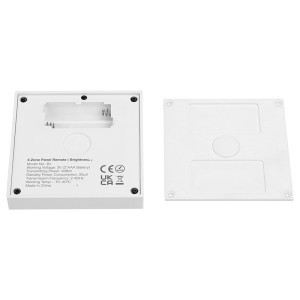

It works with 2 AAA batteries (not included) alkaline or rechargeable
For led strips, it requires the use of one or more receivers (see list of accessories).
Wifi compatible and Google and Alexa voice assistants with the use of the Wifi adapter.
Available in white or black.
Hardware guaranteed for 3 years.
| Power supply | 3V DC, 2 AAA batteries (not included) |
| Sealing | Not waterproof IP20 |
| Transmission | Radio frequency 2.4 GHz (2400 to 2483.5 MHz), 6 dBm |
| Modulation | CFSK |
| Distance | 30 meters in free field |

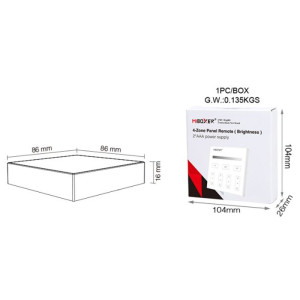

| Drive dimensions | 86x86x16mm |
| Temperature range | -10 to 40°C |
| Weight | 135 grams |
| Certifications | CE, RoHS |
| Warranty | 3 years |
