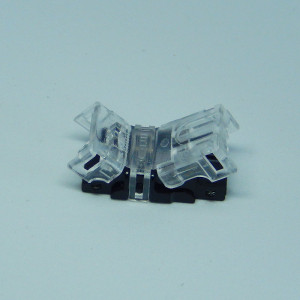

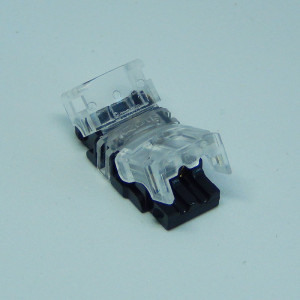

Solderless Board/cable quick connector for led strips and angle, T or cross connectors

Ref : CONBC   [#164]
€0.83

Board/cable quick connector for connecting LED strips to flat cable, without soldering

Wires
Sealing
Quantity
In stock. Shipping within 1 to 2 days.



Products guaranteed for 3 or 5 years



Products shipped from France

  Satisfied or refunded

Return within 14 days

Characteristics - Selection criteria

Solderless board/cable quick connector for led strips and corner, T or cross connectors Board/cable quick connector for connecting led strips to flat cable, without soldering

Solderless quick connector for connecting a led strip, an angle, T or cross connector to 20AGW 0.5 mm² section flat cable.
It is not suitable for powerful, ultra-powerful and dynamic effect led strips.

To insert the ribbon cable into the connector:

  • Separate the wires by about 3 cm
  • Insert the wires straight and carefully into the connector
  • Squeeze the clip firmly or use flat pliers (without forcing too much) to ensure that the clip is closed properly
Cable compatibility flat (tablecloth) 20AWG, 2, 3, 4 or 6 wires
2 conductor dimensions 24.6 x 13.3 x 7.7mm
3 conductor size 24.6 x 14.7 x 7.7mm
4 conductor dimensions 24.4 x 14.8 x 7.7mm
6 conductor size 24.4 x 17.15 x 7.7mm
